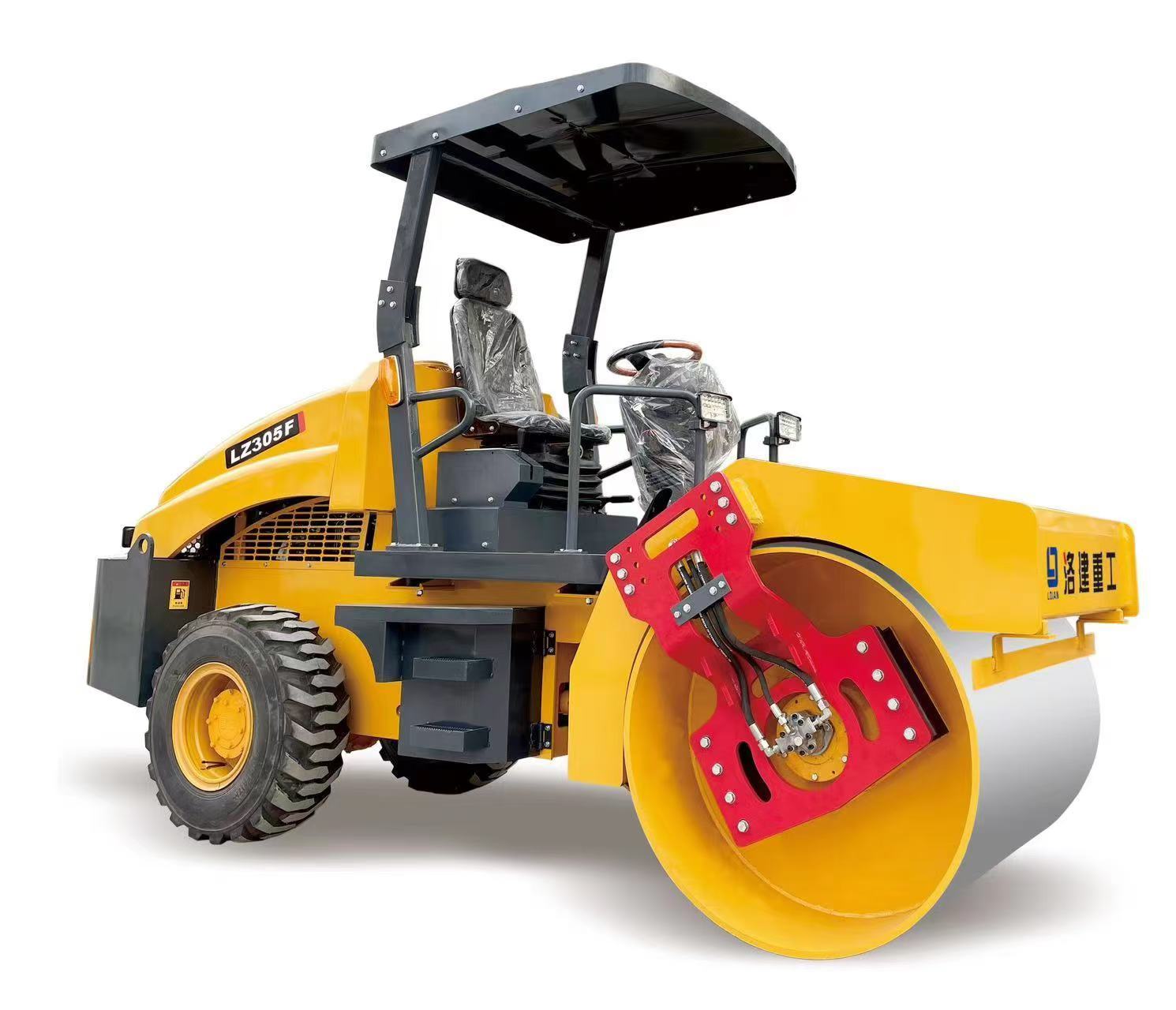

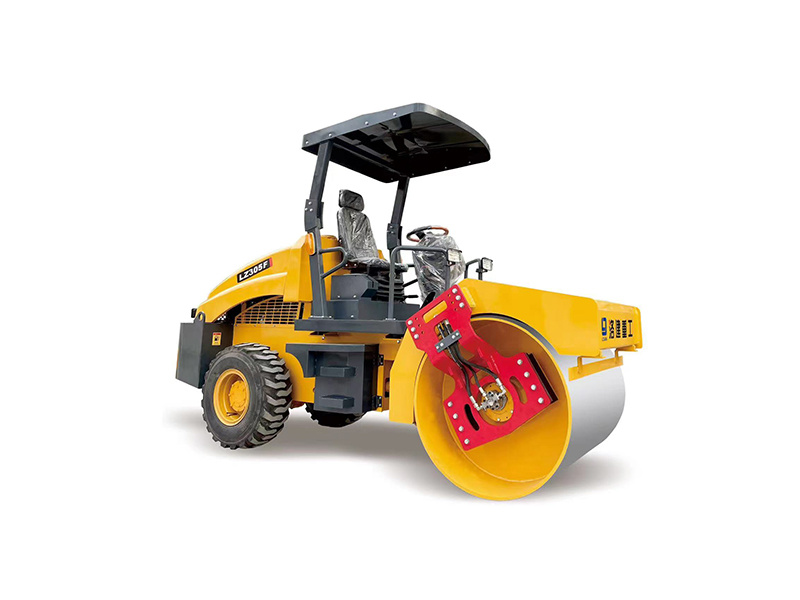

This series of products is small self-propelled vibratory roller. It is mainly used for compacting building and construction materials such as all kinds of non-cohesive materials. sandy soil. graves. macadam-aggregate mixtures. stabilized soil. bituminous concrete. etc. Especially it is most economical for village highway. large community road. water conservancy construction real estate development foundation treatment and other mini-type projects.

主要特點

■LZ305F采用動力換擋、鉗盤式刹車。

■采用雲内動力國四發動機，環保、節能、可靠、低噪音、功率儲備大。

■采用雙高低速動力換擋變速箱，操作簡單方便，轉場速度快。

■振動系統采用天津液壓振動泵、馬達，具有強大的激振力和可靠性。

■加強型專用驅動橋，負載強度高，可靠性好。

■采用儀表總成，車輛各種信息一目了然，随時掌握。

■前後LED大燈，人性化照明設計，即使夜間作業一樣得心應手。

■整機結構緊湊，轉彎半徑小，爬坡能力強，機動靈活，可靠。

主要技術參數

型号			LZ305F
工作質量	Operating mass	kg	4500
靜線載荷	Static linear load	N/cm	140
振幅	Vibration amplitude	mm	0.5
振動頻率	Vibration frequency	Hz	55
激振力	Centrifugal force	kN	72
最高行走速度	Travel speed	km/h	2.7/4.9/7.8/14.3
爬坡能力	Gradeability	%	30
轉彎半徑	Turning radius	mm	5100
振動輪寬度	Drum width	mm	1450
振動輪直徑	Drum diameter	mm	1000
軸距	Wheelbase	mm	2355
最小離地間隙	Ground clearance	mm
柴油機型号	Diesel engine model		雲内YN27(國四）
柴油機功率	Diesel engine power	kW	36.8
外形尺寸	Overall dimensions	mm	3920×1600×2520
